Antminer L9 Scrypt Hashboard Specialists
Chip-level repair for the Antminer L9 Scrypt miner (Litecoin / Dogecoin). We diagnose and restore hashboards that run hot and hard — from failed ASIC chips to core-voltage shorts and power-rail faults.
Full Overhaul
Deep cleaning, thermal paste refresh, and aging-component checks tuned for the L9's high-heat Scrypt workload.
Short Circuit Fix
Expert diagnostics for core-voltage shorts, MOSFET failures and buck-converter faults on the power delivery rails.
Board Stability
Resolving "missing hashboard", low-hashrate, high error-rate and random reboot issues on unstable L9 units.
Chip Replacement
Precision replacement of L9 Scrypt ASIC chips using professional reflow & reballing stations.
Proven Track Record on eBay/Contract
100% Honest Feedback from Verified ASIC Owners
"Great guy, answered all my questions... Good fast work, best prices."
"Best service out there. Doesn't overcharge for repairs unlike other services. Definitely will be using again."
"Awesome service had it fixed and shipped back in a matter of days... highly recommend them."
L9 board stuck at zero hashrate after thermal shutdown

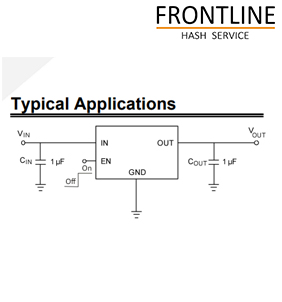

A representative Antminer L9 hashboard repair. The L9 hashboard is built around Bitmain BM1491 Scrypt ASIC chips, with a boost stage, EEPROM, crystal oscillator and 0.8 V / 1.2 V / 1.8 V LDO supplies feeding the chips.
- Reported symptom
- After repeated thermal shutdowns in a warm room, one hashboard came back at
0 asic found/ 0 hashrate while the other boards kept running. - On-bench diagnosis
- Because the BM1491 chips are wired in a serial chain, a single break drops the whole board to zero. We ran the L9 PT test file on the fixture, checked for shorts to ground, and verified the 0.8 V / 1.2 V / 1.8 V LDO rails. One LDO rail was collapsed and the chain went dead at a specific chip position under thermal imaging.
- Root cause

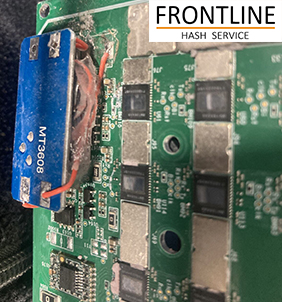

- Heat stress had killed one BM1491 chip and damaged the boost/LDO feeding that section of the chain — the L9 runs hot, so power-stage and chip failures cluster around the hottest part of the board.
- The repair
- We restored the failed LDO/boost stage, replaced the dead BM1491 with a genuine chip on a controlled BGA profile, refreshed the thermal interface, and re-ran the PT test file until the full chip chain reported clean.
- Outcome
- The board returned to full chip count and rated Scrypt hashrate, then passed a 24-hour full-load burn-in with stable temperatures before shipping back.
Representative case based on common L9 / Scrypt-miner failure patterns and standard chip-level repair procedure. Every board is diagnosed individually — exact faults and pricing are confirmed after inspection.
Antminer L9 Repair — What We Fix
The Antminer L9 is Bitmain's flagship Scrypt miner for Litecoin (LTC) and Dogecoin (DOGE), and one of the hottest-running ASICs on the market. That heat is hard on the hashboards: failed Scrypt ASIC chips, core-voltage shorts, blown MOSFETs and buck-converter faults are the failures we see most often. Frontline Hash repairs the L9 at the component level — restoring full hashrate instead of writing off an expensive board.
Every L9 board is diagnosed under thermal imaging to locate the exact fault, then we resolve short circuits, repair or replace power-delivery components, reflow or replace failed ASIC chips, and refresh the thermal interface. Each repaired board runs a 24-hour full-load burn-in before it ships back, so it returns stable and mining. Mail-in and on-site farm service are both available.
L9 Repair — Frequently Asked Questions
How much does Antminer L9 hashboard repair cost?
It depends on the fault. We diagnose the board first and send a transparent, itemized quote before any work — board-level repair is almost always a fraction of a replacement L9 hashboard.
What common L9 faults do you repair?
Missing hashboard, low hashrate, core-voltage shorts, failed Scrypt ASIC chips, blown MOSFETs and buck-converter faults, high error rates and random reboots. The L9 runs very hot, so heat-related chip and power-rail failures are the most common.
Which coins does the Antminer L9 mine?
The L9 is a Scrypt miner used primarily for Litecoin (LTC) and Dogecoin (DOGE) merged mining.
What is the turnaround time?
Most mail-in L9 boards are repaired within a few business days of arrival, followed by a 24-hour full-load burn-in test before return. On-site farm repairs are scheduled with our technicians.
Do you offer on-site L9 repair for farms?
Yes — we provide on-site ASIC repair so mining farms can restore dead L9 units on their own floor without shipping downtime.
Related ASIC Repair Services
Need your Antminer L9 Repaired?
Professional mail-in and on-site repair for the L9 Scrypt series — fast turnaround guaranteed.
