Antminer S21 Pro / S21 XP / S21+ Specialists
Next-generation ASIC maintenance. We provide advanced chip-level repairs for the Antminer S21 Pro, S21 XP and S21+ series, focusing on high-efficiency performance restoration and complex power-rail diagnostics.
Full Overhaul
Deep cleaning and premium thermal interface material refresh designed for S21 high-heat environments.
Short Circuit Fix
Expert diagnostics for domain-voltage shorts and PIC/EEPROM communication failures.
Stability Tuning
Resolving "missing boards", "SOC init failed", and low hashrate issues on S21 Pro/XP units.
Chip Replacement
Precision replacement of BM1368 ASIC chips using professional reflow stations.
Proven Track Record on eBay/Contract
100% Honest Feedback from Verified ASIC Owners
"Great guy, answered all my questions... Good fast work, best prices."
"Best service out there. Doesn't overcharge for repairs unlike other services. Definitely will be using again."
"Awesome service had it fixed and shipped back in a matter of days... highly recommend them."
S21 Pro reporting 60 of 65 chips — a whole voltage domain gone dark
A representative Antminer S21 Pro hashboard repair. Board architecture: 65× BM1370 chips in 13 voltage domains (5 chips per domain, ~1.04 V per domain). Unlike the S19, the S21 has no PIC — the control board sets the core-voltage setpoint over I2C via a DAC.
- Reported symptom
- Low hashrate on one board. The kernel log showed
chain[2] find 60 chipsinstead of the expected 65 — a clean 5-chip shortfall. - On-bench diagnosis

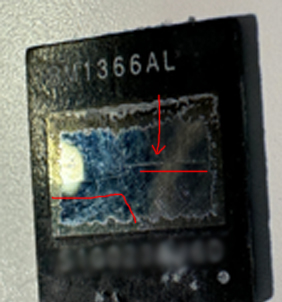

- A missing block of exactly 5 chips points straight at one dead voltage domain (5 chips × 13 domains on the S21 Pro). We scanned each domain rail: one domain read out of range instead of ~1.04 V. A short-to-ground check plus thermal imaging isolated a single BM1370 chip that had shorted and pulled its whole domain offline.
- Root cause
- A single failed BM1370. On 5 nm chips the tolerances are tight and one shorted die takes its entire series-wired domain down with it — so five good chips go dark because of one bad one.
- The repair
- We removed the shorted BM1370 and fitted a genuine Bitmain chip using a controlled hot-air profile (~350–380°C) and 0.4 mm reball, cleared the short, then confirmed the domain returned to ~1.04 V and that the control board could set voltage across all 13 domains over I2C.
- Outcome
- Full 65-chip count restored and rated hashrate recovered. The board passed a 24-hour full-load burn-in before return. (On the S21 XP the same logic applies with 91× BM1370P chips in 7-chip domains; on the S21+ chip counts differ but the domain-failure pattern is identical.)
Representative case based on common S21-series failure patterns and standard chip-level repair procedure. Every board is diagnosed individually — exact faults and pricing are confirmed after inspection.
Antminer S21 Pro, S21 XP & S21+ Repair — What We Fix
The Antminer S21 Pro and S21 XP are among the most efficient Bitcoin (SHA-256) miners Bitmain has ever shipped, built on 4nm BM1370 / BM1368 ASIC chips. That efficiency comes from extreme power density, which makes precise thermal and power-rail management essential — and it's exactly where these boards tend to fail. Frontline Hash repairs the S21 Pro, S21 XP and S21+ at the chip level, so you restore full hashrate instead of scrapping an expensive board.
Typical S21 failures include "missing boards", "SOC init failed" errors, low or unstable hashrate, domain-voltage shorts, and PIC/EEPROM communication faults. We diagnose each board, resolve short circuits, reflow or replace failed BM1370 chips with genuine Bitmain parts, refresh the thermal interface for the S21's high-heat design, and run a 24-hour full-load burn-in before return. Mail-in and on-site farm service are both available.
S21 Pro / S21 XP Repair — Frequently Asked Questions
How much does S21 Pro / S21 XP repair cost?
It depends on the fault — a single-domain short is far cheaper than replacing multiple BM1370 chips. We diagnose the board first and send a transparent, itemized quote before any repair. Chip-level repair is almost always a fraction of a new hashboard.
What common S21 Pro / S21 XP faults do you repair?
Missing boards, "SOC init failed", low or unstable hashrate, domain-voltage short circuits, and PIC/EEPROM communication failures. The S21 series runs at very high power density, so thermal and power-rail faults are the most frequent.
Which S21 models do you service?
We repair the Antminer S21 Pro, S21 XP and S21+, which use Bitmain's 4nm BM1370 / BM1368 ASIC chips. For the standard S21 and T21, see our S21 / T21 repair page.
What is the turnaround time?
Most mail-in S21 boards are repaired within a few business days of arrival, followed by a 24-hour full-load burn-in before return. On-site farm repairs are scheduled with our technicians.
Do you offer on-site S21 repair for farms?
Yes — we provide on-site ASIC repair so mining farms can restore dead S21 units on their own floor without shipping downtime.
Related ASIC Repair Services
Need your S21 Pro / S21 XP / S21+ Repaired?
Professional mail-in repair service for all Antminer S21 series models — fast turnaround guaranteed.
