Antminer Z11 Hashboard Specialists
Chip-level repair for the Antminer Z11 (Zcash / Equihash). We revive older Z11 boards — from broken serial chains and 0-hashrate faults to core-voltage shorts and aging power components — and bring them back to full hashrate.
Full Overhaul
Cleaning, thermal paste refresh and aging-component checks — essential for an older platform like the Z11.
0 Hashrate / Chain Fix
Locating the broken link in the 3-chip serial chain that drops the whole board to zero.
Short Circuit Fix
Diagnosing core-voltage shorts and power-delivery faults, restoring healthy rails to the ASIC chips.
Chip Replacement
Precision replacement of Z11 BM1744 Equihash ASIC chips using professional BGA reflow stations.
Proven Track Record on eBay/Contract
100% Honest Feedback from Verified ASIC Owners
"Great guy, answered all my questions... Good fast work, best prices."
"Best service out there. Doesn't overcharge for repairs unlike other services. Definitely will be using again."
"Awesome service had it fixed and shipped back in a matter of days... highly recommend them."
Z11 board reading zero chips after years in service
A representative Antminer Z11 hashboard repair. Board architecture: three 12 nm Bitmain Equihash ASIC chips (BM1744) wired in a serial chain — so any single break anywhere in the chain takes the whole board to zero.
- Reported symptom
- One hashboard produced no hashrate at all — the miner detected the board but reported
0 asic foundon that chain while the other boards ran normally. - On-bench diagnosis
- On the test fixture the serial chain was broken: the clock and reset reached the first chip, but the data signal never returned through all three. We checked the core-voltage rail and ran short-to-ground and continuity tests; thermal imaging showed one BM1744 not drawing current, with cold, aged solder around it.
- Root cause

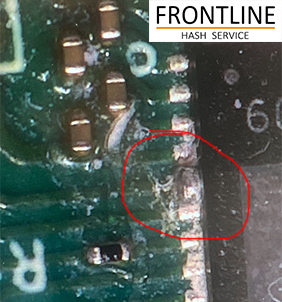

- Years of thermal cycling had fatigued the BGA solder under one chip and degraded a nearby power component, breaking the serial chain. On a 3-chip board that single failure is enough to zero the entire hashboard.
- The repair
- We reflowed and replaced the failed BM1744 with a genuine chip on a controlled BGA profile, repaired the degraded power component, restored the core-voltage rail, and re-ran the board on the fixture until all three chips reported clean.
- Outcome
- The board returned to full chip count and rated Equihash hashrate, then passed a 24-hour full-load burn-in before shipping back — extending the life of hardware many owners would have scrapped.
Representative case based on common Z11 failure patterns and standard chip-level repair procedure. Every board is diagnosed individually — exact faults and pricing are confirmed after inspection.
Antminer Z11 Repair — What We Fix
The Antminer Z11 is Bitmain's Equihash (Zcash) miner, with each hashboard built around three 12 nm BM1744 ASIC chips wired in a serial daisy chain. That serial design is why a Z11 board so often fails all-or-nothing: a single dead chip or cracked solder joint anywhere in the chain drops the entire board to 0 hashrate. As an older platform, the Z11 also suffers from aging power components and thermal-fatigued solder, which is exactly what chip-level repair addresses.
We diagnose each Z11 board on a test fixture, trace the broken link in the chain, check the core-voltage rail with short-to-ground and continuity tests, and confirm the fault under thermal imaging. Failed chips are replaced with genuine Bitmain parts, degraded power components are repaired, and every board goes through a 24-hour full-load burn-in before return. Mail-in and on-site service are both available — a cost-effective way to keep older Z11 fleets earning instead of scrapping them.
Z11 Repair — Frequently Asked Questions
How much does Antminer Z11 hashboard repair cost?
It depends on the fault. We diagnose the board first and send a transparent, itemized quote before any work — board-level repair is almost always a fraction of a replacement Z11 hashboard.
Why does my Z11 board show 0 chips or 0 hashrate?
The Z11 hashboard uses three ASIC chips wired in a serial chain, so a single dead chip or broken solder joint anywhere in the chain drops the entire board to zero. We locate the break on a test fixture and repair it at the chip level.
What chip does the Antminer Z11 use?
Each Z11 hashboard carries three 12nm Bitmain Equihash ASIC chips (BM1744) in a serial daisy chain.
What common Z11 faults do you repair?

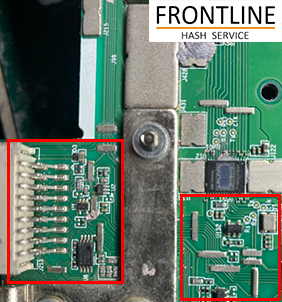

Cannot find IP, will not power on, 0 hashrate, low hashrate, short chip counts, core-voltage shorts and power-circuit faults. Because the Z11 is an older unit, aging solder joints and power components are frequent culprits.
Do you offer on-site Z11 repair for farms?
Yes — we provide on-site ASIC repair so mining operations can restore dead Z11 units on their own floor without shipping downtime.
