Antminer Z15/Z15J Hashboard Specialists
Beyond basic maintenance. We provide high-level technical repairs for Zcash Z15 and Z15J hashboards, specializing in advanced chip replacement and complex circuit diagnostics. Running the newer, hotter Z15 Pro? See our dedicated Z15 Pro repair page.
Full Overhaul
Maintenance including cleaning, thermal paste refresh, and aging component checks.
Short Circuit Fix
Expert diagnostics for core-voltage shorts and power supply circuit failures on the board.
Board Stability
Resolving "missing boards,X0X missing chips" high error rates, and random reboots for unstable Z15 units.
Chip Replacement
Professional replacement of ASIC chips with Orignal Bitmain Chips.
Proven Track Record on eBay/Contract
100% Honest Feedback from Verified ASIC Owners
"Great guy, answered all my questions... Good fast work, best prices."
"Best service out there. Doesn't overcharge for repairs unlike other services. Definitely will be using again."
"Awesome service had it fixed and shipped back in a matter of days... highly recommend them and a partial refund for shipping thanks again guys."
"Very good seller. Honest, he addressed the issue and fixed it fast. Highly recommended. Thank You."
"Good communication, service, and expedited fixing and shipping."
Authentic Z15 Repair in Action
A glimpse into our professional chip-level workshop

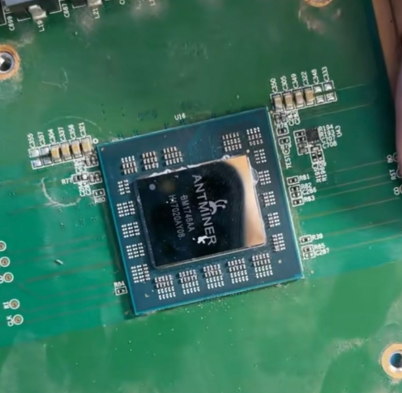

Advanced Micro-Soldering
Precision replacement of ASIC chips.

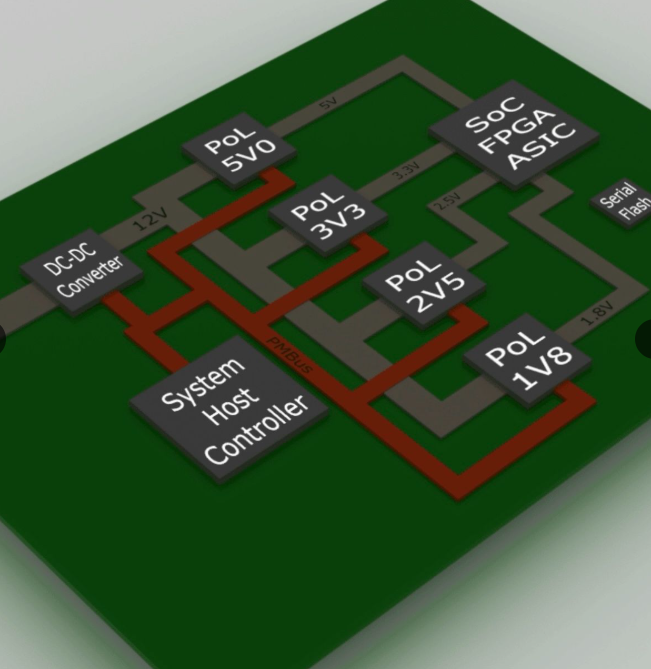

Short Circuit Diagnostics
Locating core voltage faults on the Z15 logic board.

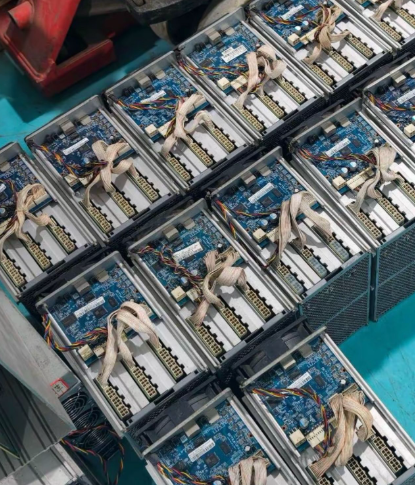

Final Burn-in Test
24-hour stability check before secure shipping.
Z15 dropped to two working boards after a summer heat spike
A representative Antminer Z15 hashboard repair, board architecture: 3× BM1746 "Black Rhino" chips in a serial chain, 0.78 V core, VDDIO 1.8 V / VDDPLL 0.7 V.
- Reported symptom
- Hashrate fell by roughly one third. The dashboard showed one hashboard with a short chip count and a temperature field stuck at
Temp NG / 0°Cafter a run of hot days. - On-bench diagnosis
- On the test fixture the chip chain broke partway down the board: the 0.85 V clock (XIN) reached chip 1, but the data signal (CO, normally 1.6–1.8 V) died mid-chain and the 0.78 V core rail sagged on that domain. Thermal imaging highlighted one BM1746 running cold (no current draw); the on-board temperature sensor read 0°C.
- Root cause
- Thermal-cycling fatigue had cracked the BGA solder joints under one BM1746 chip, breaking the serial data chain, and had also killed the temperature-sensor chip on the same board. The power-management IC for that domain tested healthy.
- The repair
- We removed and reballed/replaced the failed BM1746 with a genuine Bitmain chip using a controlled BGA profile, reflowed the temperature sensor, then re-verified the rails: 0.78 V core, VDDIO 1.8 V, VDDPLL 0.7 V, and the 3.3 V / 5 V supplies. The power controller was re-checked (Bitmain PMICs allow only a limited number of programming cycles, so we program conservatively).
- Outcome
- All three boards returned to full chip count and hashrate. The unit passed a 24-hour full-load burn-in with a healthy temperature curve before shipping back.
Representative case based on common Z15 failure patterns and standard chip-level repair procedure. Every board is diagnosed individually — exact faults and pricing are confirmed after inspection.
Antminer Z15 & Z15J Repair — What We Fix
The Antminer Z15 is the workhorse of Zcash (Equihash) mining, and its hashboards are built around Bitmain's three BM1746 "Black Rhino" ASIC chips in a serial chain. Because these boards run under heavy, sustained load, the most common failures we see are dead or missing chips, core-voltage short circuits, blown MOSFETs on the power-delivery rails, and boards that report a low hashrate or drop out entirely. Frontline Hash performs true chip-level repair on the Z15 and Z15J — not board swaps — so you keep your original hardware and pay a fraction of replacement cost. (For the newer, higher-heat model, see our Z15 Pro repair page.)
Every repair starts with a full diagnosis under thermal imaging to pinpoint the exact fault, followed by professional reflow, reballing or replacement of failed ASIC chips using genuine Bitmain parts. We then refresh the thermal interface, verify every domain, and run a 24-hour full-load burn-in so the board comes back stable — not just "powers on." We offer both mail-in service for individual miners and on-site repair for farms that can't afford downtime.
Z15 Repair — Frequently Asked Questions
How much does Antminer Z15 hashboard repair cost?
Pricing depends on the fault — a thermal-paste refresh and cleaning is inexpensive, while multi-chip replacement costs more. After diagnosis we send a transparent, itemized quote before any work begins, and board-level repair is almost always a fraction of buying a replacement board.
What common Z15 faults do you repair?
Missing chips / "X0X" chip errors, low hashrate, core-voltage short circuits, dead boards that won't initialize, random reboots, and high hardware-error rates. Most Z15 problems come down to chip or power-rail failures, both of which we repair at the component level.
Do you repair the Z15J as well, and what about the Z15 Pro?
Yes, we repair both the Z15 and Z15J here — they share the same BM1746 chip architecture and failure modes. The newer Z15 Pro runs hotter and has its own dedicated repair page.
What is the turnaround time?
Most mail-in Z15 boards are diagnosed and repaired within a few business days of arrival, plus a mandatory 24-hour burn-in test before we ship them back. On-site farm repairs are scheduled directly with our technicians.
Do you offer on-site Z15 repair?
Yes — for mining farms we provide on-site ASIC repair so dead machines are fixed on your floor without shipping. See our on-site service workflow for details.
Do you use genuine Bitmain chips?
Yes. Failed ASIC chips are replaced with original Bitmain BM1746 chips using professional reflow and reballing stations for reliable, long-term results.
Related ASIC Repair Services
Ready to Restore Your Z15?
Contact our senior technicians today — mail-in or on-site service available.
